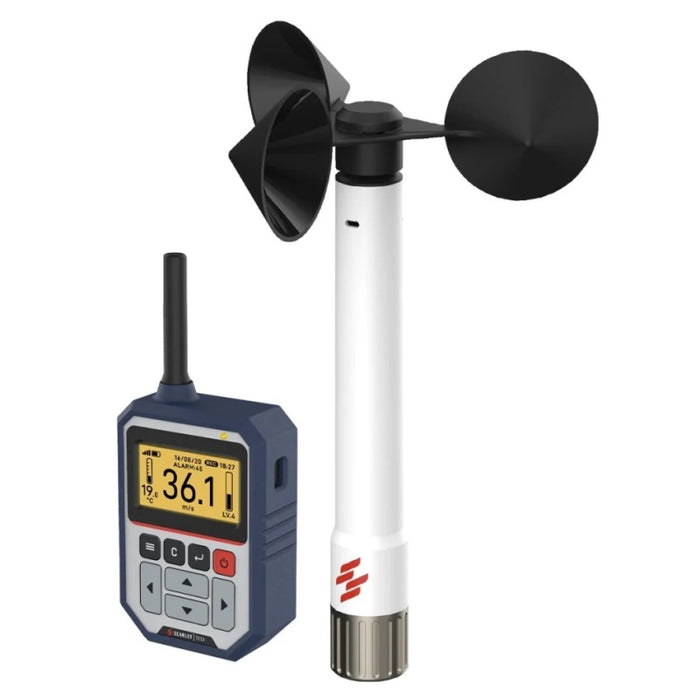

Scarlet WR-3 Plus Wireless Anemometer
Crane's operation in windy conditions could create a potentially dangerous situation. The wind forces exerted on both the crane and the load can affect the strength and stability of the cranes. In order to ensure safety during lifting operations, it is very important for the members of the lifting team to know the wind speed and resistance. The challenge to know the wind speed is the connection between the sensor and the display. Traditional cabled-anemometer wouldn’t work well with the staggering heights among cranes and complex working conditions. WR-3 Plus Wireless Anemometer offers a trusted and stable wind measurement solution.
FEATURES
● Max 500m ultra-long wireless transceiver
● Audible & visual wind speed alarm
● Data recording up to 1 year
● Wind speed, temperature, air pressure measurements
● Max 3 years sensor battery life
● IP67 waterproof & impact resistant
● Fast & secure magnetic installation kit
APPLICATIONS
● Cranes & Construction
● Marine, Ports & Offshore
● Film Production & Outdoor Entertainment
● Scaffolding & Temporary Structure
● Rigging & Communications Industry
● Wind Farm & Turbine
FUNCTIONS
● Instant Wind Speed Alarm: WR-3 Plus displays the live wind speed value in selectable measurement units (m/s, knots, MPH, km/hr). Users can set a wind speed warning limit on based on local operation safety standards. An audible and visual alarm will be triggered when the limit has been reached. Each sensor has a unique wireless address that can connect to several displays to notify multiple stakeholders on-site.
● Data Recording: WR-3 Plus captures and stores wind speed, temperature, and air pressure measurements. 64MB built-in memory and outstanding battery life support up to 1 year of continuous data recording. (based on 10s logging interval, adjustable: 2s, 5s, 10s, 1min, 5mins, 10mins, 60mins)
PACKAGING INCLUDES
● Wireless Sensor
● Wind Cups
● Receiver
● Receiver Antenna
● Receiver Holder
● Adhesive Metal Flakes x 3(holder kit for Receiver Holder Installation)
● AA Battery x 3 (for Receiver)
● 3.6V 18505 Lithium battery x 1 (placed in Sensor)
● User Manual & Certificate
OPTIONAL ACCESSORIES
● Mounting Bracket for Sensor
● Spare Wind Cups
● Spare Sensor Battery(3.6V 1805 Lithium Battery)
● External Antenna
