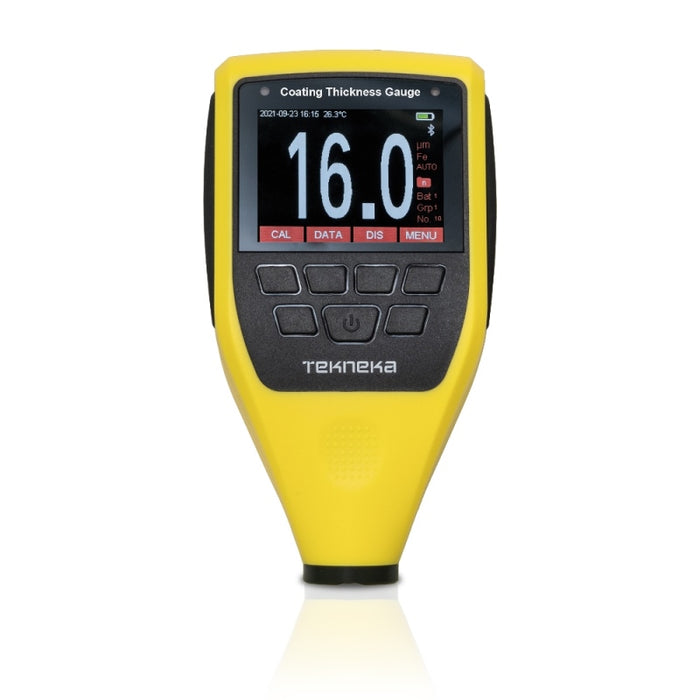

Tekneka 760 Coating Thickness Gauge with Bluetooth


Brand: Tekneka

Model No: 760

Order Code: 760

Range: 0 to 5000μm

Warranty: 1 Year

Stock Status : Instock


Original price Price Was : $299.00
Current price Price : $199.00 CAD
Save 33%

Tekneka 760 coating thickness gauge has magnetic induction (ferrous) or eddy current (non-ferrous) to take accurate non-destructive measurements of coating and dry film thickness (DFT) on metal substrates such as steel and aluminium. It has measuring ranges from 0 to 5000µm [±(2%+1µm)] accuracy and easy-to-do calibration adjustment with four points/zero-point option using standard foils. It gives you fast measurement and the best repeatability with high accuracy of measured results. Users can store up to 1,300 readings in multiple batches/group modes and transfer the data through Bluetooth. Users can also measure real-time data and represent it in the form of listed values/graphs/bars using a mobile application. This coating thickness gauge is ideal for painted and powder-coated surface testing, automotive paint inspection, coated material testing, and manufacturing quality control applications.

FEATURES

 LCD display with 2.4-inch high contrast colors with adaptive screen rotation
 Measures both Fe & NFe materials up to 5000μm (other ranges customizable)
 It has Bluetooth connectivity for real-time viewing on your mobile
 Users can view live graphs, trends, histograms, and statistics data on the device
 Users can record up to 1,300 points as a batch with multiple groups (10 Batches/13 Groups/10 Points)
 Download stored data in a detailed report (.pdf/.txt) using a mobile application
 IMO PSPC 90/10 mode (“PASS” or “FAIL” determination based upon the NDFT value)
 Very fast & best repeatability with high accuracy of measured results
 Comes with an in-built measuring mode specifically for car & general applications
 Accurate measurements on smooth, rough, thin, and curved surfaces
 Users can perform zero-point calibration and multi-point calibration (up to 4 points)
 Easy to recall the readings and delete specific readings
 Comes with an alarm feature to set high/low limits for each general group
 It can be interfaced with software for real-time measurement and data export
 PC interface through USB and data export in “.txt” format
 Auto power off and low battery indicator
 Statistics Display: No. of readings, Mean, Min, Max & Standard deviation, Coefficient of variation, Numbers below/above limit

APPLICATIONS

 This Coating Thickness Gauge can be widely used to Test Car Paints, Electroplating, Surface Technology, Pipelines Anti-Corrosion Coating, Chemical Equipment, Mechanical Equipment Surface Anti-Corrosion, Inspection, and Quality Control of products.

PACKING INCLUDES

 710 Coating Thickness Gauge
 Standard Foils & Zero Plates
 2 x AAA Batteries
 USB Cable
 User Manual
