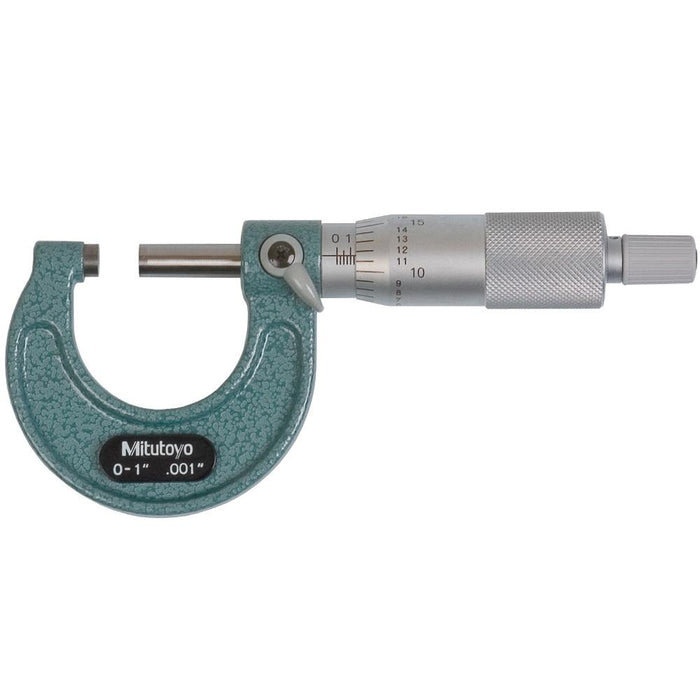

Mitutoyo 103-177 Outside Micrometer, 0-1 inch

The Mitutoyo 103-177 Outside Mechanical Micrometer features a hammertone, green, baked-enamel finished frame, and Carbide tipped measuring faces. This model includes a Ratchet Stop and a Measuring Range of 0-1" with an Accuracy of +/- .0001".

The Mitutoyo 103-177 outside micrometer set has the following specifications:

● Range: 0-1"
● Graduations: .001"
● Accuracy: +/- .0001"
● Mass (g): 175

Features:

● Hammertone, baked-enamel finished frame.
● Ratchet Stop or Friction Thimble for better repeatability
● All micrometers over 0-1" includes a standard

Technical Data

● Flatness:
     .000024" for models up to 12"
     .00004" for models over 12"
● Parallelism: [.00008 + .00004 (L/4)]" L= max range (inch)
● Measuring faces: Carbide tipped
