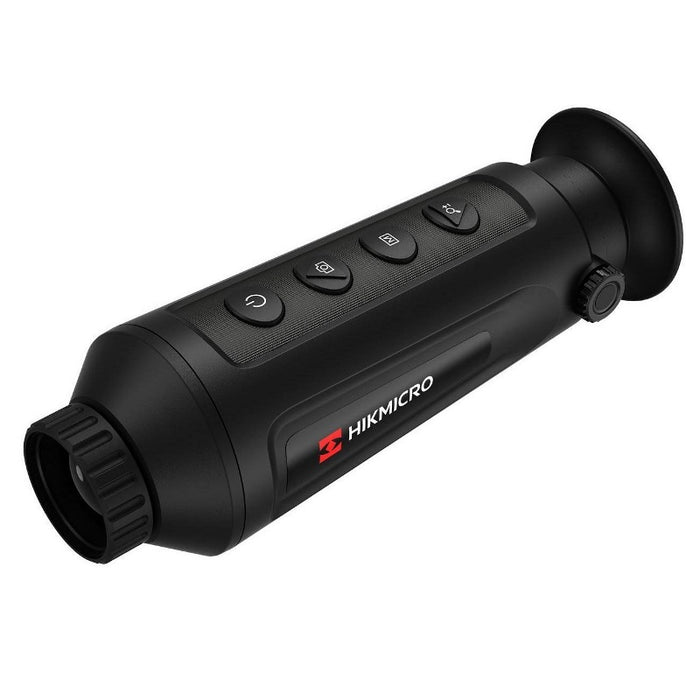

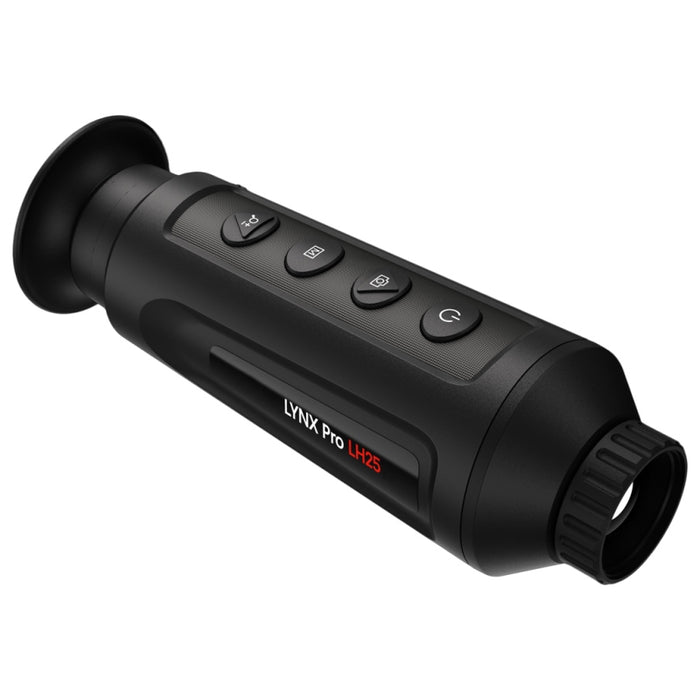

HIKMICRO LYNX Pro LH25 Handheld Thermal Monocular Camera
Brand: Hikmicro
Model No: LYNX Pro LH25
Order Code: HM-TS03-25XG/W-LH25
Range: 1200 m / 3935 ft
Warranty: 1 Year
Stock Status : Instock
HIKMICRO LYNX Pro LH25 [HM-TS03-25XG/W-LH25] Handheld Thermal Monocular Camera is equipped with a 384 x 288 infrared detector and a 1280 x 960 LCOS display. It supports functions of observation, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity built-in thermal detector provides you with a clear view even in total darkness. The monocular is mainly applied to scenarios such as patrolling, searching and rescuing, hiking, travel, hunting, etc.
Note: The Monocular lens must not be exposed to Sun directly, read all instructions before use.
FEATURES
● 384 x 288 resolution, 12μm, high sensitivity detector
● Adaptive AGC, DDE, 3D DNR, NETD less than 35mK (@ 25°C), F# = 1.0
● 1280 x 960 resolution 0.4-inch LCOS display
● Built-in rechargeable lithium battery
● Up to 7.5 hours of continuous running
● Wi-Fi hot spot
● Type-C interface
SPECIFICATIONS
THERMAL MODULE
● Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
● Maximum Resolution: 384 x 288
● Pixel Interval: 12μm
● Response Waveband: 8μm to 14μm
● NETD: Less than 35mK (@ 25 °C),F# = 1.0
● Field of View: 10.5° x 7.9° (H x V)
● Lens (Focal Length): 25mm
● Aperture: F1.0
● Magnification: 2.45 to 19.6
IMAGE DISPLAY
● Monitor: 0.4-inch, LCOS, 1280 x 960
● FFC (Flat Field Correction): Auto, Manual, External Correction

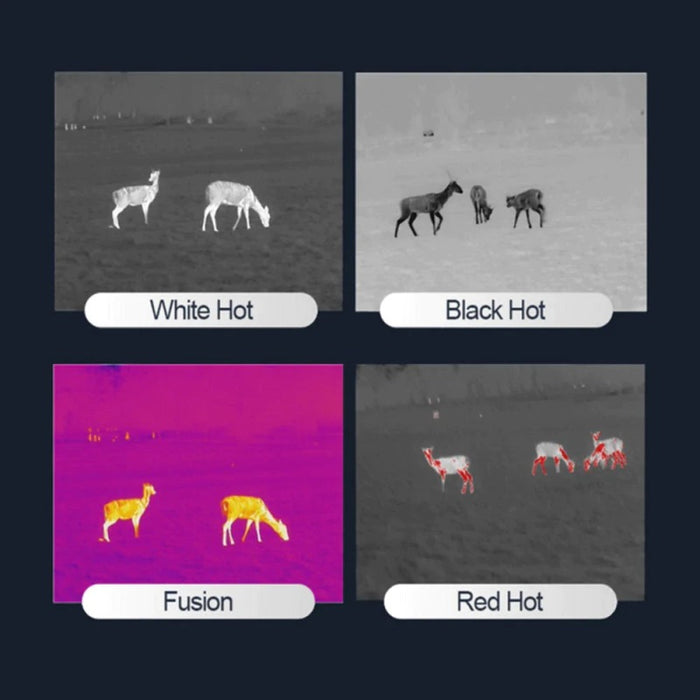

● Palettes: Black Hot, White Hot, Red Hot, Fusion
● Frame Frequency: 50Hz
SMART FUNCTIONS
● Wi-Fi Hot Spot: Yes
● Standby Mode: Yes
● Detection Range: 1180m
SYSTEM
● Built-in Memory: Built-in memory module (8GB
● Record Video: Yes
● Capture Snapshot: Yes
POWER SUPPLY
● Battery Type: Lithium battery
● Battery Operating Time: 7.5 hours continuous running with Wi-Fi hot spot function off (@ 25°C)
6 hours continuous running with Wi-Fi hot spot function on (@ 25°C)
● Battery Capacity Display: Yes
GENERAL
● Work Temperature/Humidity: -20 to 55°C (-4 to 131°F)
● Power: 5V DC/2A, 1.5W, Type-C Interface
● Protection Level: IP67
● Dimension: 171 x 61 x 57mm
● Weight: 300g (0.66lb)
PACKING INCLUDES
● 1 x LYNX Pro LH25
● 1 x Protective Bag
● 1 x USB Cable
● 1 x Non-dust Cloth
● 1 x Wrist Strap
● Quick Start Guide
