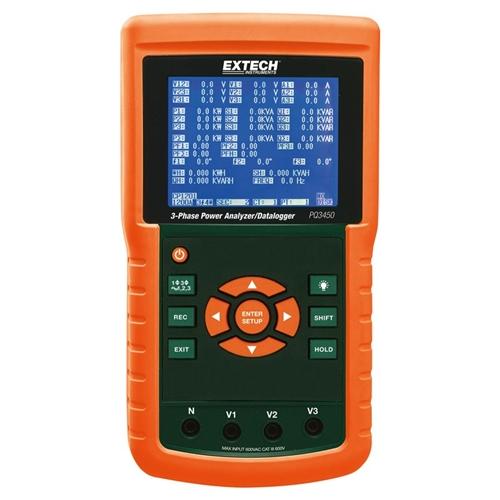

Extech PQ3450 3-Phase Power Analyzer/Datalogger

Product Description

The PQ3450 is a 3-phase power analyzer/data logger capable of logging up to 30,000 sets of measurements in Excel format on a removable SD memory card. The product is easy to hold with a rugged over-molded housing and features a built-in clock and calendar, 35 parameters, and a CAT III 600V safety rating. Complete with a one-year warranty, 4 voltage leads with alligator clips, 8 AA batteries, an SD card, a 100-240 Volt AC adaptor, and case.

Features

● Large dot-matrix sun-readable numerical backlit LCD with an easy-to-use onscreen menu
● Full system analysis with up to 35 parameters:
- V (phase-to-phase), V (phase-to-ground)
- A (phase-to-ground)
- KW / KVA / KVAR / PF (phase)
- KW / KVA / KVAR / PF (system)
- KWH / KVAH / KVARH / PFH (system)
- Phase angle
● Select 200A, 1200A Current Clamps or 3000A Flexible Current Probes (sold separately)
● Adjustable Current Transformer CT (1 to 600) and Potential Transformer PT (1 to 1000) ratio for high power distribution systems
● Log up to 30,000 readings on a removable SD memory card in Microsoft Excel® format
● Wide sampling rate range (2 seconds to 2 hours)
● Built-in Clock and Calendar
● Easy-to-use onscreen menu
● Easy-to-hold rugged over-molded housing

Note: Clamp probes are sold separately.
