Testo 550i Smart Kit App Controlled Digital Manifold With Wireless Clamp Temperature Probes (NTC)


Brand: Testo

Model No: 550i

Order Code: 0564 3550

Warranty: 1 year

Stock Status : 2 - 4 Weeks


Price : $639.00 CAD

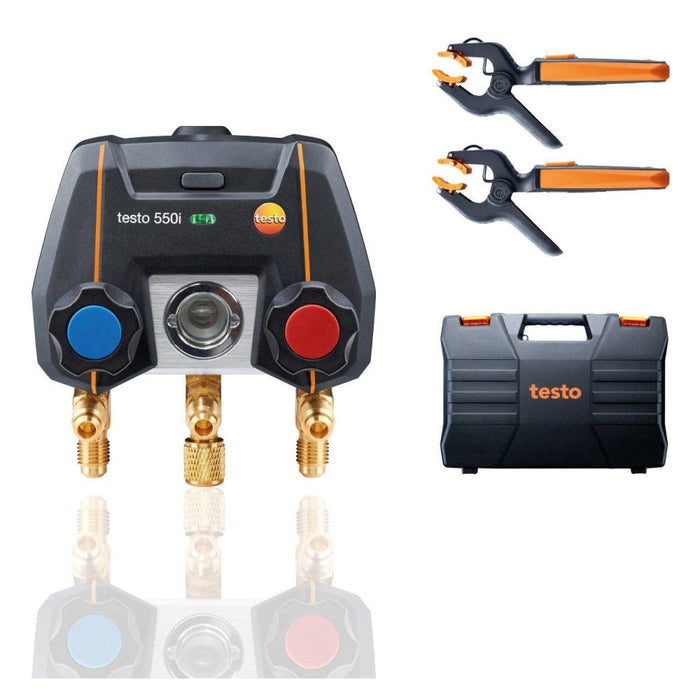

The kit for app-controlled, wireless measurements and digital documentation on your smartphone. You will get the testo 550i app-controlled digital manifold with Bluetooth, 2-way valve block and sturdy hook, two testo 115i wireless clamp thermometers (Bluetooth, NTC) and a robust transport case. For other wireless measurements, the optional Testo Smart Probes for temperature, humidity and vacuum are the perfect addition. You’ll be ideally equipped to carry out your measuring tasks on refrigeration and air conditioning systems and also heat pumps.

EQUIPMENT INCLUDES

● Testo 550i digital 2-way manifold including batteries (3x AAA) and calibration protocol
●
2x testo 115i wireless Bluetooth clamp thermometers
●
Transport case
●
Testo Smart App (free download)
●
Instruction manuals

Testo 550i - App Controlled Digital Manifold With Bluetooth And 2-Way Valve Block

From the measurement itself through to the documentation – thanks to the app, you can have your everyday servicing and maintenance work on your smartphone or tablet. The testo 550i digital manifold is equipped with Bluetooth, 2-way valve block and a sturdy hook, and can be fully controlled via app and smartphone or tablet for flexible, fast measurements and digital documentation.

TECHNICAL DATA

Pressure measurement
● Measuring Range: -1 to +60 bar
● Accuracy: ±0.5 % fs
● Resolution: 0.01 bar
● Probe Connection: 3 x 7/16" – UNF
● Overload Rel. (high pressure): +65 bar

General Technical Data
● Weight: 595 g
● Dimensions: 77 x 109 x 63 mm
● Operating Temperature: -10 to +50 °C
● Storage Temperature: -20 to +60 °C
● Radio Range: 150 m
● Battery Type: 3 AAA micro batteries
● Battery Life: 130 h
● Data Transfer: Bluetooth®
● System Requirements: Requires iOS 11.0 or newer, Android 6.0 or newer, and a Mobile end device with Bluetooth 4.0
● Protection Class: IP54
Refrigerants In Instrument: R407H; R23; R290; R1234yf; R442A; R134a; R123; R452B; R438A; R421A; R453a; R401B; R1233zd; R410A; R407A; R407C; R452A; R401A; R422C; R427A;R422B; R424A; R125; R414B; R404A; R408A; R448A; R422D; R12; R114; R421B; R449A; R409A; R420A; R444B; R32; R454A; R124; R402A; R450A; R407F; R416A; R13; R437A; R1234ze; R454B; R402B; R22; R434A; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (H₂O); R744 (CO₂)
 Refrigerants Update Via App: R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; R411A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22

TESTO 115I - CLAMP THERMOMETER OPERATED VIA SMARTPHONE

Professional measuring technology is now mobile and when it comes to measuring the temperature at widely spaced measuring points in particular. The Testo 115i makes things a lot easier – thanks to a wireless connection to your smartphone or tablet. When used in conjunction with the Testo 549i pressure measuring instrument, individual refrigeration system parameters can also be calculated.

TECHNICAL DATA

Temperature - NTC
● Measuring Range: -40 to +150 °C
● Accuracy: ±1.3 °C (-20 to +85 °C)
● Resolution: 0.1 °C

General Technical Data
● Weight: 127.4 g
● Dimensions: 183 x 90 x 30 mm
● Product / Housing Material: Plastic
● Operating Temperature: -20 to +50 °C
● Storage Temperature: -20 to +60 °C
● Radio Range: 100 m
● Battery Type: 3 AAA micro batteries
● Battery Life: 150 h
● Data Transfer: Bluetooth®
● System Requirements: Requires iOS 11.0 or newer, Android 6.0 or newer, and a Mobile end device with Bluetooth 4.0
