The Hioki FT6380-90 measures grounding resistance simply by clamping to multiple-grounded ground wires. No auxiliary grounding rod is needed, and there is no need to disconnect the ground wire from the grounding rod. The compact, low-profile sensor can be used to clamp ground wires with ease, and also provide AC current measurement functionality, and can measure currents ranging from leakage current on the order of several mA to load currents of up to 60A. The FT6380-90 includes the Z3210 wireless adapter that allows the use of Gennect Cross, a complementary app designed specifically for use with Hioki measuring instruments, which lets you check and manage measurement results and create reports. Just connect the Z3210 Wireless Adapter to your Hioki-compatible instrument, to make it Bluetooth® ready. Wirelessly connect Hioki-compliant instruments with a simple connection. Transmit measured values to your tablet or smartphone.
Features
● Measure multi-grounded systems: The instrument has two cores for voltage injection and current measurement.
1. The voltage transducer injects a defined voltage into the multi-grounded system
2. From the defined voltage and measured current, the total circuit loop resistance is calculated in the following equation: Rx + 1/ [ (1/R1) + (1/R2) + (1/R3) + (1/R4) + ... ] = V/I
3. In a typical multi-grounded system, the parallel resistance value is small enough to be ignored and the equation as referred to on the left can be simulated as follows: Rx = V/I
● Clamp at the narrowest point: The dramatically slim 0.79" (20mm) jaws let you finish your job easily and efficiently
● Transfer data via Bluetooth wireless communication: When the wireless adaptor is installed, Bluetooth wireless communication is enabled

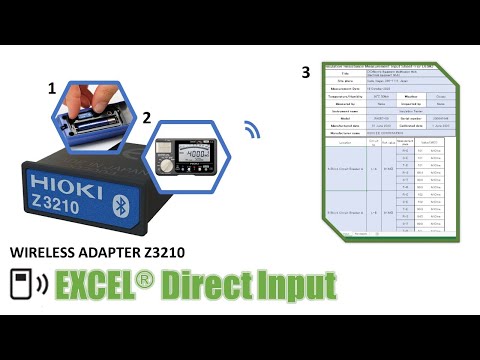

● Easily transfer measurement data to an Excel file: When the wireless adaptor is installed, the Excel Direct Input function allows you to input measurement values directly and automatically into an Excel file once the instrument's auto-hold function is activated
● Alarm function: Set the alarm to audibly and visually notify yourself that the resistance or current value exceeds the threshold
● High accuracy and repeatability: Well-designed magnetic shields eliminate the leakage flux between the two cores that often affect measurement accuracy
● LCD with beautiful backlight: With the bright backlight, you can easily read the measurement value even in dark locations
● Large storage capacity (up to 2000 data): You can store up to 2000 measurement values in the field and recall them in your office later
● Instantly create reports with a free app (GENNECT Cross): GENNECT Cross, a free app designed specifically for use with Hioki measuring instruments, lets you check and manage measurement results and create reports. When the wireless adaptor is installed, the software provides a range of functionality that helps manage data in the field, including photographing measurement sites, placing measurement results on photographs, and saving handwritten memos.

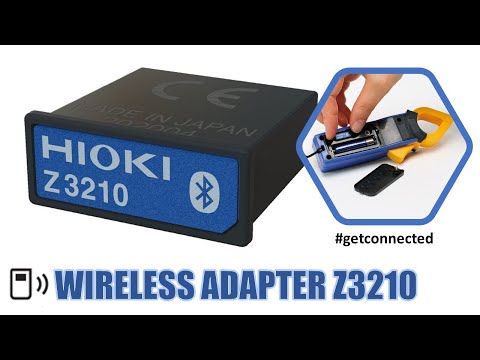

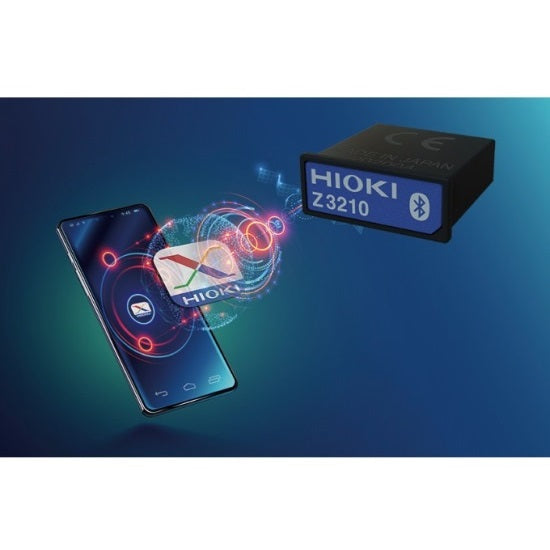

Z3210 FEATURES
● Increase your work efficiency, by eliminating human errors from manual reporting
● Provide additional new functions for Hioki instruments such as waveform display & more
● Transfer readings on instruments to easy-to-read graphical reports to prove integrity
● Compliance with wireless regulations in more than 50 countries and regions
● Increase your work productivity & save costs
COMPATIBLE PRODUCTS
● Hioki CM4001 AC Leakage Clamp Meter
● Hioki PD3259-50 Digital Phase Detector
● Hioki FT6380-50 Earth Resistance Tester
● Hioki FT6031-50 Earth Resistance Tester
● Hioki IR4057-50 Insulation Resistance Tester
● Hioki BT3554-51 Battery Tester
● Hioki BT3554-52 Battery Tester
Note: Z3210 cannot be used by itself. Wireless communication will be possible by connecting to a compatible measuring instrument.
Packing Includes
● Hioki FT6380-50 Earth Resistance Tester
● Hioki Z3210 Wireless Adapter
● Resistance Check Loop
● 2 x Alkaline Battery
● Strap
● Instruction Manual
● Carrying Case
