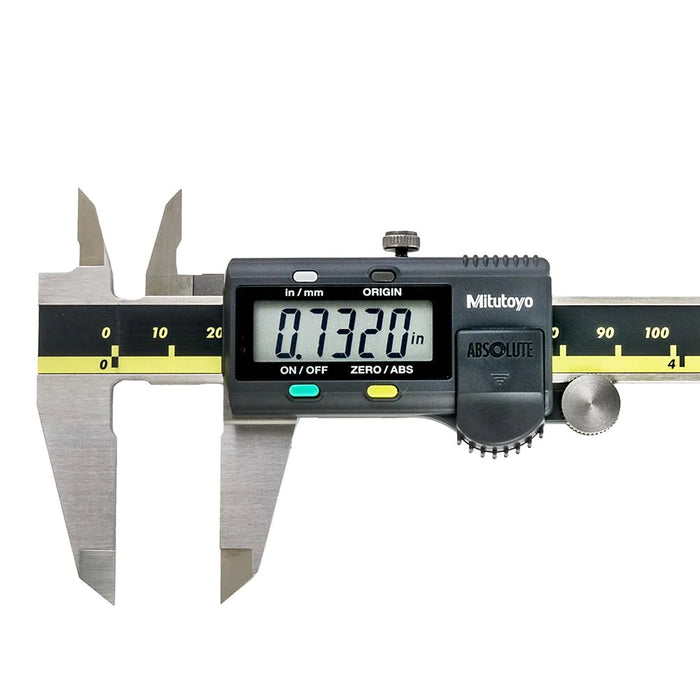

Mitutoyo 500-171-30 Absolute Digimatic Caliper 0-6"/ 150mm SPC

The Mitutoyo 500-171 Absolute Digimatic Caliper has a measuring range of 0-6"/ 150mm with .0005"/ 0.01mm resolution. Includes SPC data output and a thumb roller. Features also include a large, clear LCD readout, inch/metric conversion, and a Zero/Absolute key that allows the display to be zero-set at any slider position along the scale for incremental comparison measurements. This switch will also allow a return to the absolute (ABS) coordinate and display of the true position from the origin point, which is usually the jaws-closed position.

Technical Data

● Range: 0-6 inch (0-150mm)
● Resolution: 0.0005"/ 0.01mm
● Accuracy: ±0.0010” / ±0.02mm
● Type: Digimatic
● SPC Output: Yes
